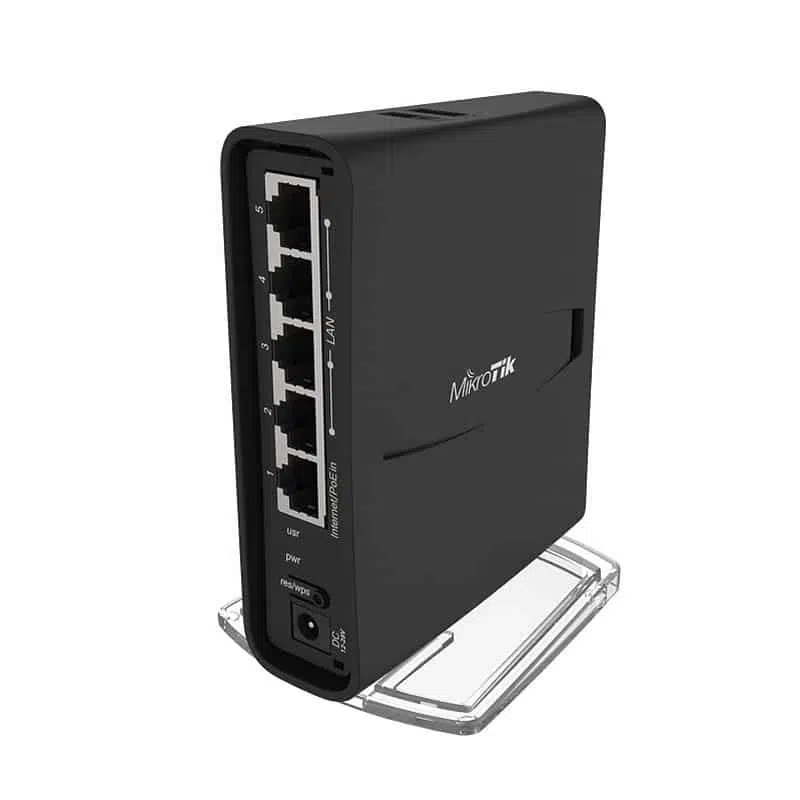

RBD52G-5HacD2HnD-TC (hAP ac2)
สามารถรองรับ Users Online ได้มากถึง 40+ Clients และ รองรับ Throughput (อินเตอร์เน็ต) ได้ถึง 400 Mbps (แบบมีการเขียน Firewall) ; RBD52G-5HacD2HnD-TC ฮาร์ดแวร์ รองรับการทำงาน CPU 4 Core และ RAM 128 MB มี Interface LAN Gigabit จำนวน 5 Ports ; Mikrotik hAP ac2 สามารถรองรับการทำงาน Mode Access Point แบบ Dual-Band 2.4Ghz / 5Ghz และได้ Bandwidth Speed รวมทั้งหมด 1167 Mbps ; และที่สำคัญ ยังรองรับช่อง USB for 3G/4G Support อีกต่างหาก รุ่นนี้ถือว่าเป็นรุ่นสุดคุ้ม ราคาถูก และทำอะไรได้สาระพัดประโยชน์เลย
– hAP ac2 สามารถรองรับ Throughput (อินเตอร์เน็ต) ได้ถึง 400 Mbps (แบบมีการเขียน Firewall)
– รองรับการทำงาน Interface Gigabit (5) 10/100/1000 Ethernet Port
– ฮาร์ดแวร์ รองรับการทำงาน CPU 4 Core และ RAM 128 MB
– RBD52G-5HacD2HnD-TC รองรับการทำงานแบบ Dual-Band 2.4Ghz / 5Ghz
– รองรับ 2.4 GHz Band with Speeds of up to 300 Mbps
– รองรับ 5 GHz Band with Speeds of up to 867 Mbps
– รองรับ features Hotspot ; Switch VLAN ; VPN ; และอื่นๆอีกมากมาย
Specification
- Product codeRBD52G-5HacD2HnD-TC
- ArchitectureARM 32bit
- CPUIPQ-4018
- CPU core count4
- CPU nominal frequency488-896 (auto) MHz
- CPU Threads count4
- Switch chip modelIPQ-4018
- Dimensions34 x 119 x 98mm
- RouterOS license4
- Operating SystemRouterOS
- Size of RAM128 MB
- Storage size16 MB
- Storage typeFLASH
- MTBFApproximately 100’000 hours at 25C
- Tested ambient temperature-40°C to 50°C
- Wireless 2.4 GHz Max data rate300 Mbit/s
- Wireless 2.4 GHz Number of chains2
- Wireless 2.4 GHz standards802.11b/g/n
- Antenna gain dBi for 2.4 GHz2.5
- Wireless 2.4 GHz chip modelIPQ-4018
- Wireless 2.4 GHz generationWi-Fi 4
- Wireless 5 GHz Max data rate867 Mbit/s
- Wireless 5 GHz Number of chains2
- Wireless 5 GHz standards802.11a/n/ac
- Antenna gain dBi for 5 GHz2.5
- Wireless 5 GHz chip modelIPQ-4018
- Wireless 5 GHz generationWi-Fi 5
- WiFi speedAC1200
- 10/100/1000 Ethernet ports5
- Number of USB ports1
- USB Power ResetYes
- USB slot typeUSB type A
- Max USB current (A)1
- Number of DC inputs2 (DC jack, PoE-IN)
- DC jack input Voltage12-30 V
- Max power consumption21 W
- Max power consumption without attachments16 W
- PoE inPassive PoE
- Cooling typePassive
- PoE in input Voltage18-28 V
- CertificationCE, FCC, IC, EAC, ROHS
- IPIP20
- Mode buttonYes
- Link DownloadhAP ac²
- Warrantyรับประกัน 2 ปีเต็ม
Wireless Specification
ETHERNET TEST RESULTS
| RBD52G-5HacD2HnD-TCr2 | IPQ-4018 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 162.5 | 1973.4 | 469.9 | 1924.7 | 1484.8 | 760.2 |
| Bridging | 25 bridge filter rules | 162.1 | 1968.5 | 352.9 | 1445.5 | 359.2 | 183.9 |
| Routing | none (fast path) | 162.5 | 1973.4 | 469.9 | 1924.7 | 1488 | 761.9 |
| Routing | 25 simple queues | 162.5 | 1973.4 | 469.9 | 1924.7 | 506.3 | 259.2 |
| Routing | 25 ip filter rules | 162.2 | 1969.8 | 240.8 | 986.3 | 242.9 | 124.4 |
IPSEC TEST RESULTS
| RBD52G-5HacD2HnD-TCr2 | IPQ-4018 IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 37.9 | 424.5 | 59 | 241.7 | 61.6 | 31.5 |
| 256 tunnels | AES-128-CBC + SHA1 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
| 256 tunnels | AES-128-CBC + SHA256 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
| 256 tunnels | AES-256-CBC + SHA1 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
| 256 tunnels | AES-256-CBC + SHA256 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
