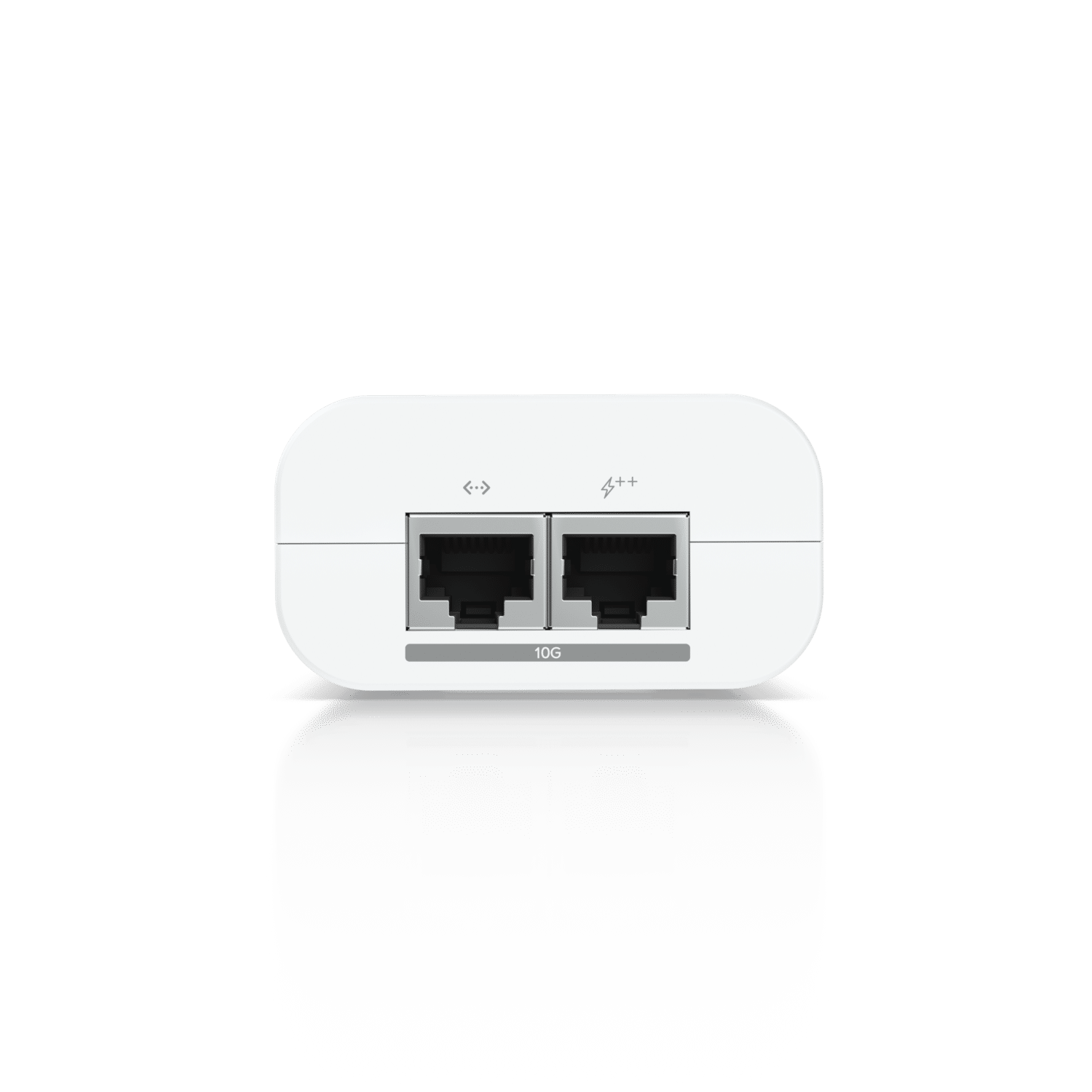

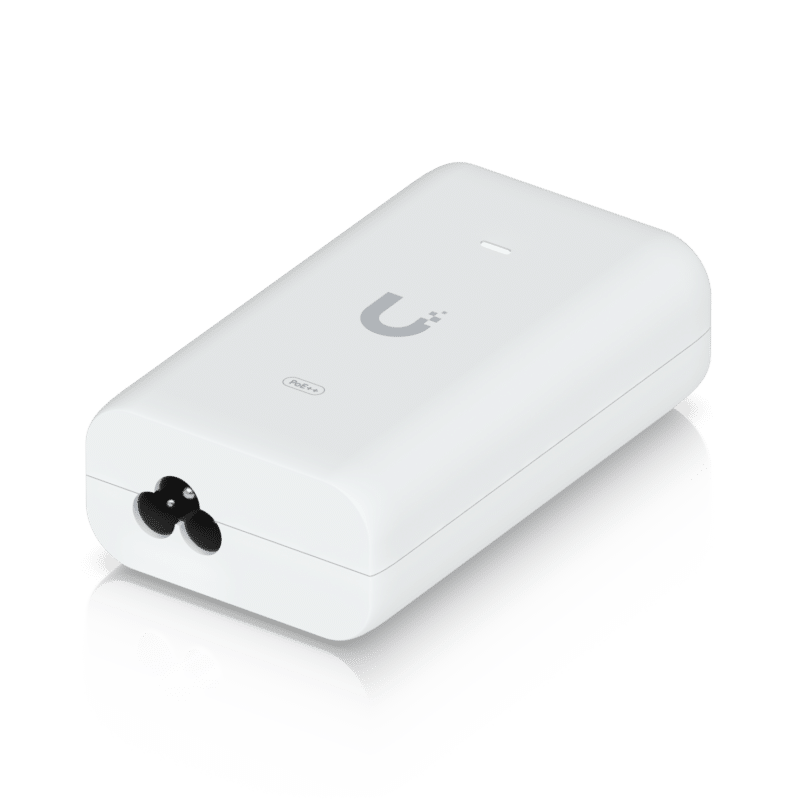

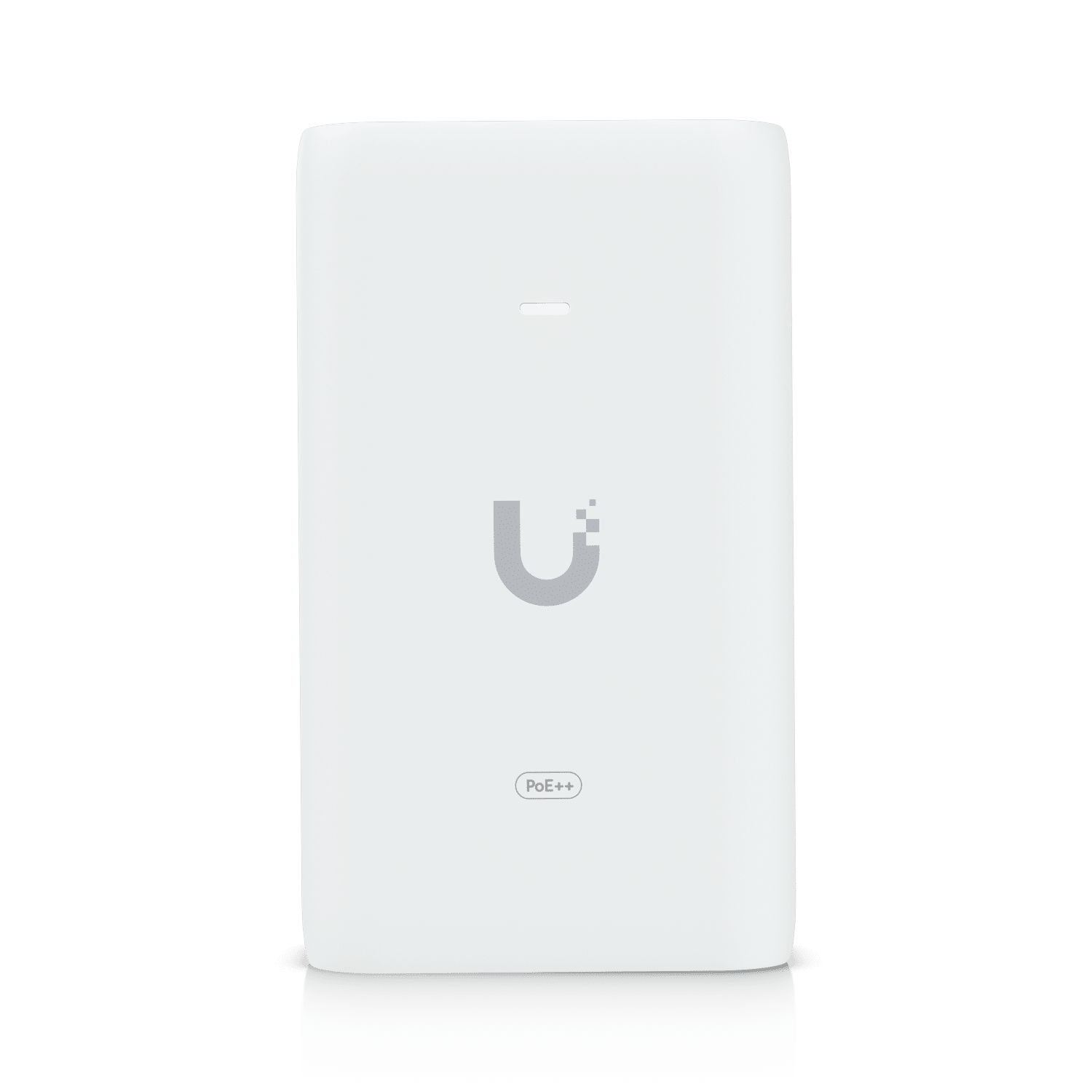

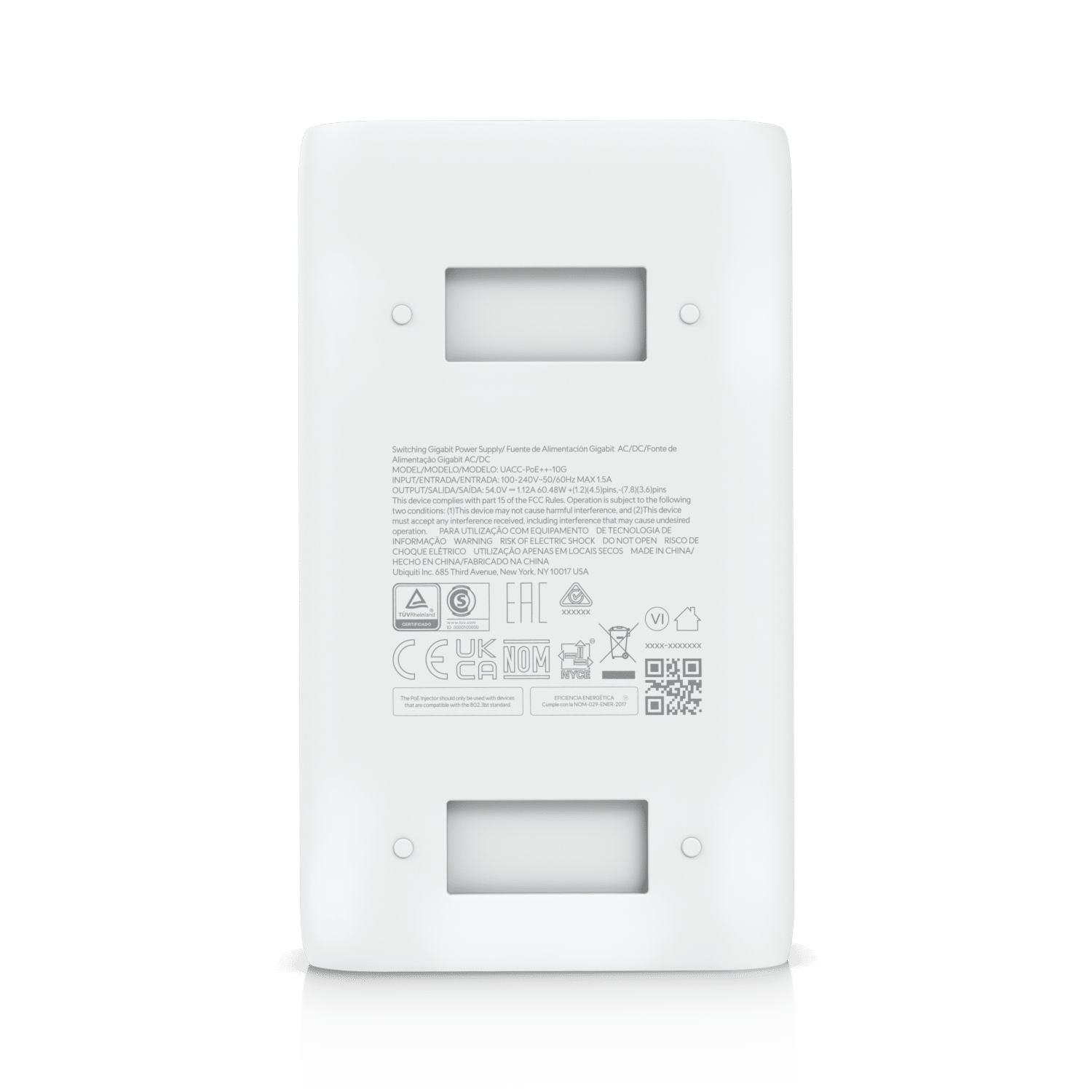

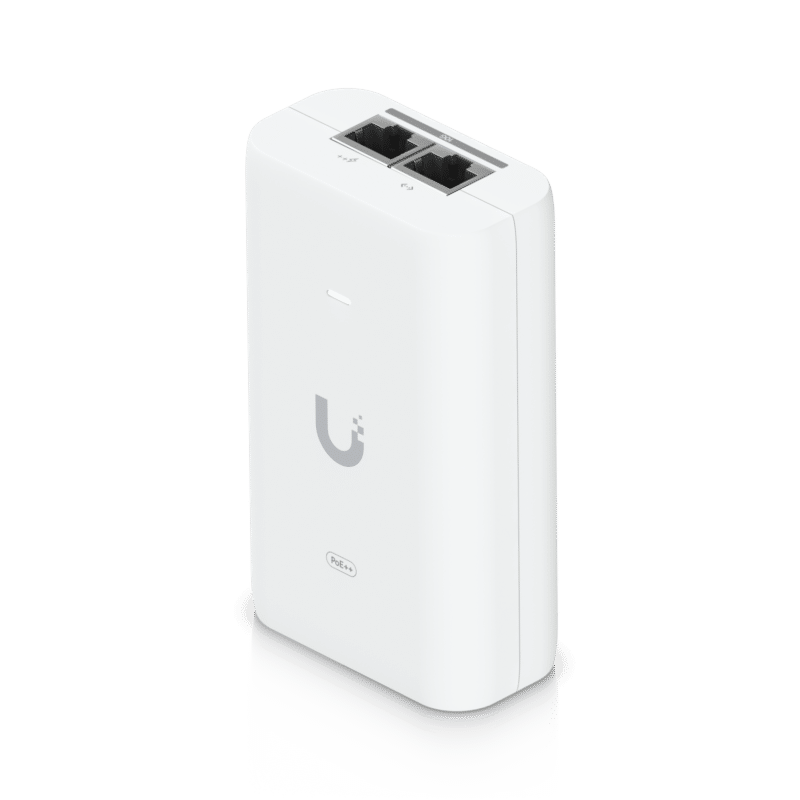

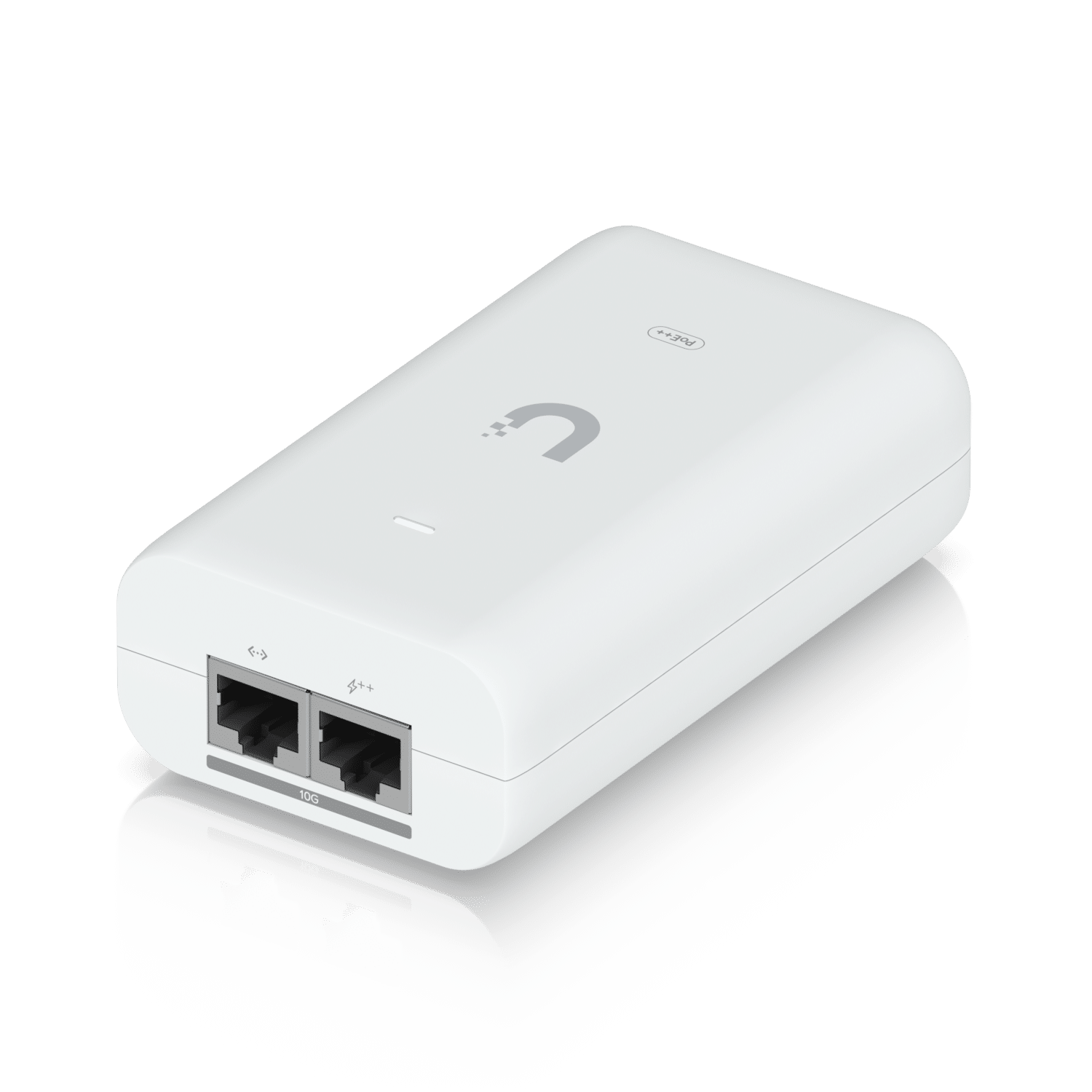

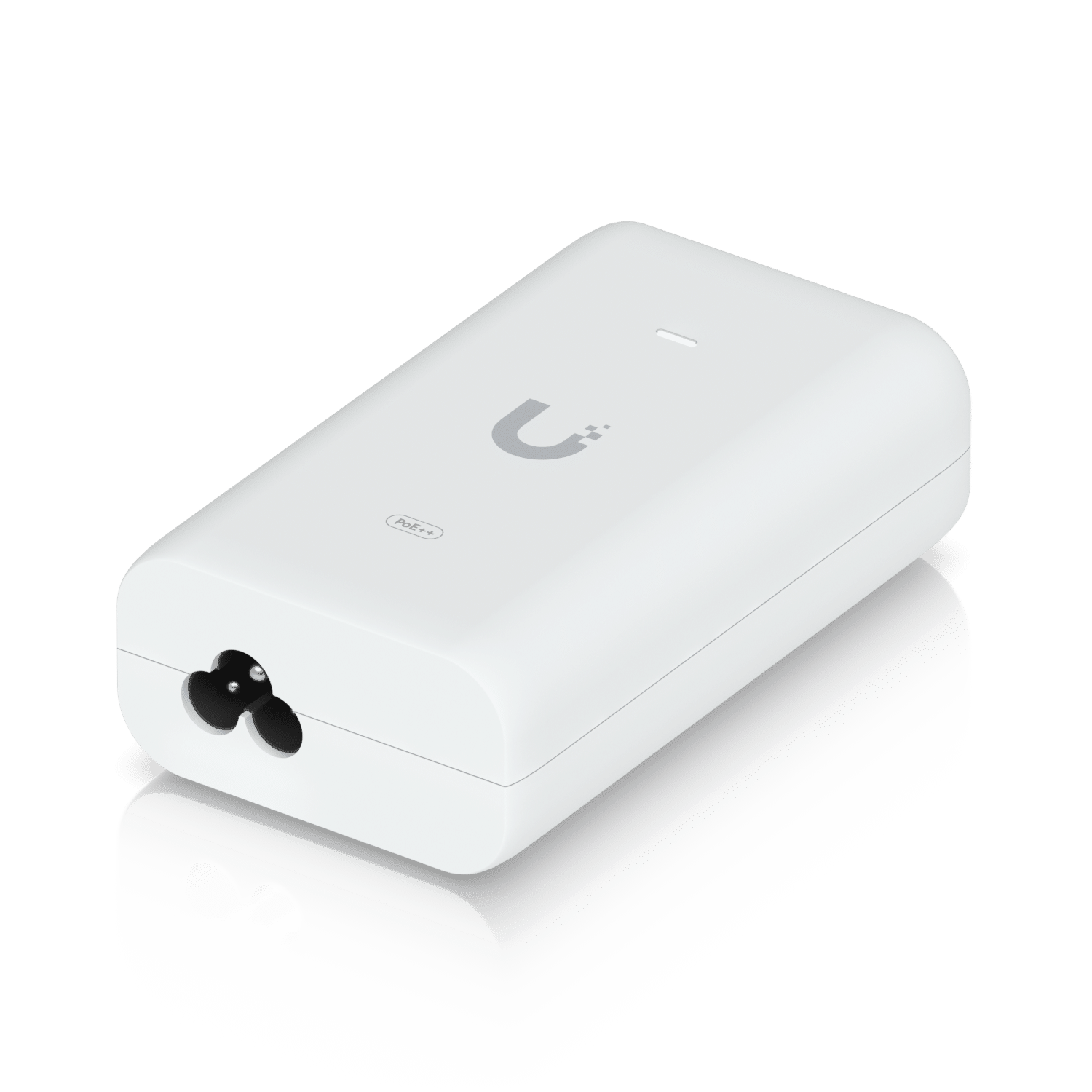

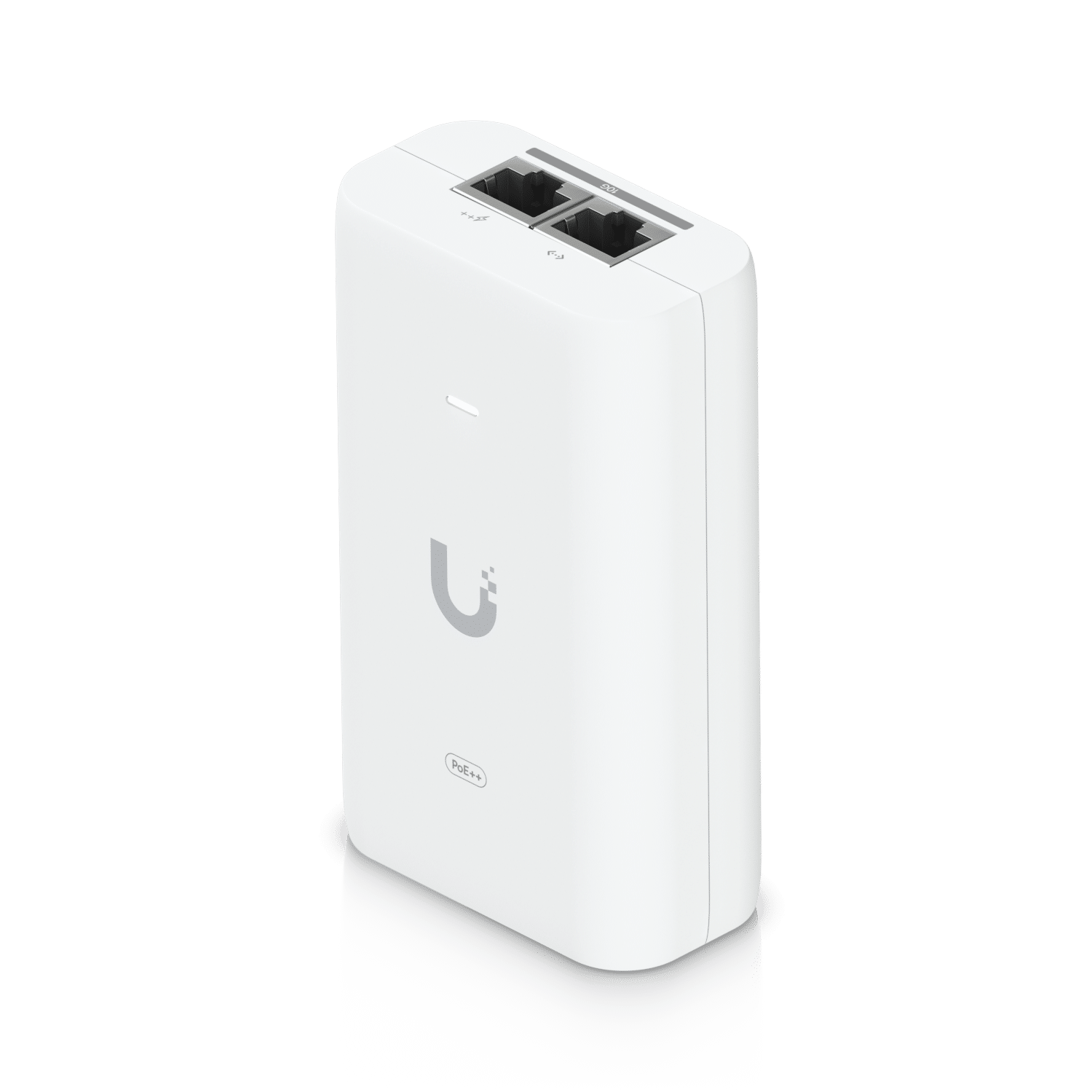

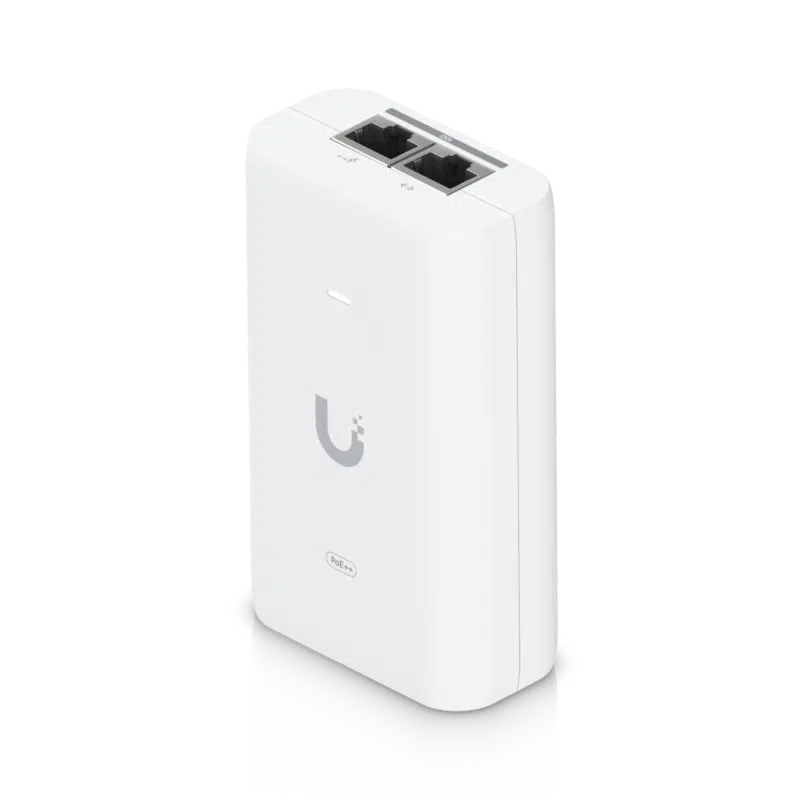

10G PoE++ Adapter (60W)
สามารถจ่ายไฟทั้ง af/at และรองรับ Interface LAN 10GbE ; และมีระบบป้องกันไฟกระชาก และกระแสไฟเกินให้ด้วย ; ใช้งานได้กับรุ่น UniFi U7 ทั้งหลายเช่น: E7 , E7-Campus, E7-Campus-Indoor , E7-Audience , E7-Audience-Indoor , U7-Pro-XGS , U7-Pro-XG และอื่นๆอีก
– 10G PoE++ Adapter (60W) รองรับ Port LAN 10GbE
– จ่ายไฟได้สูงสุด 60W of PoE++
– ใช้งานร่วมกับ UniFi U7 ทั้งหลาย ที่ใช้ Port 10GbE
– สามารถป้องกันไฟกระชาก

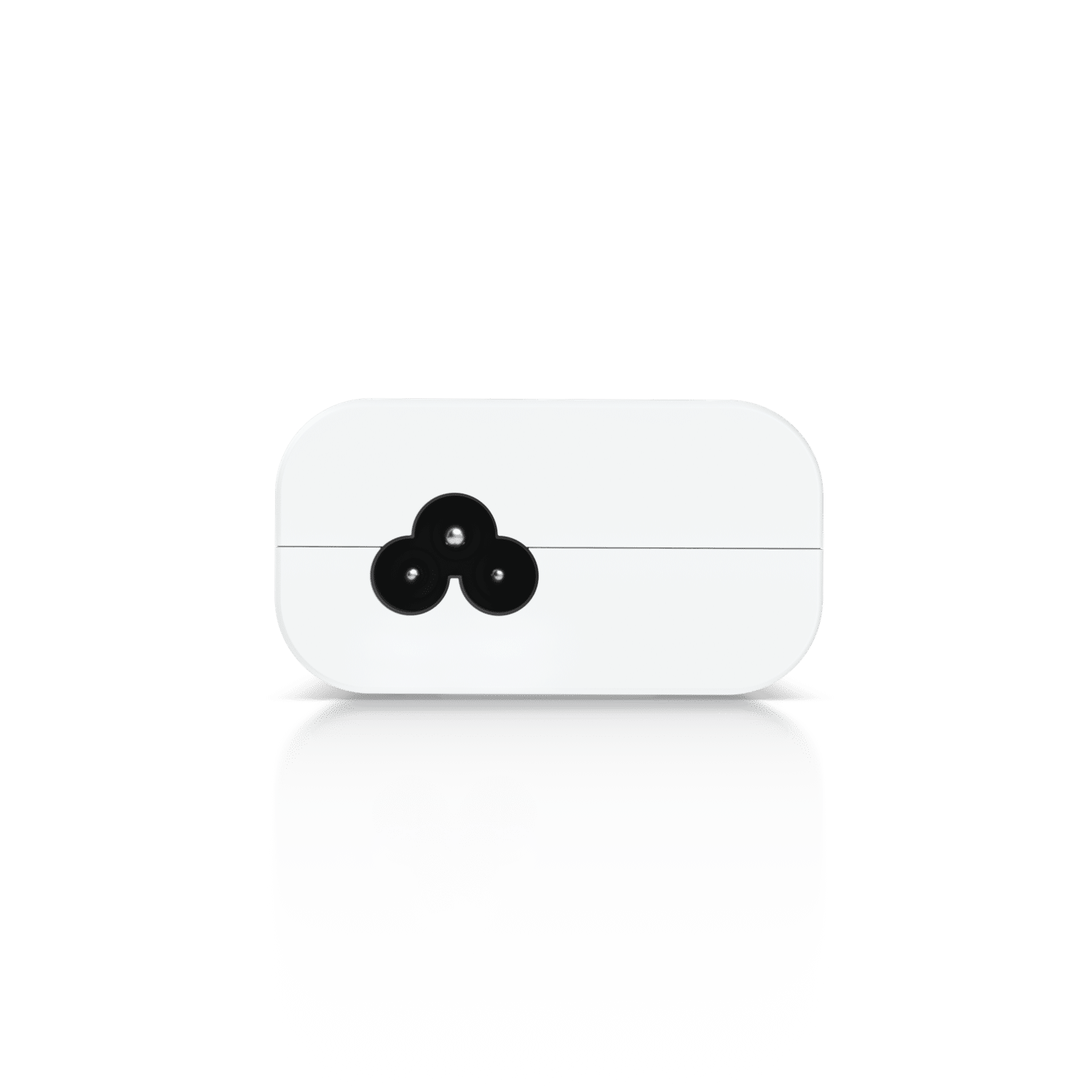

– ในสาย AC cable มาพร้อมกับ Ground
UACC-PoE-++10G
Dimensions
106 x 63 x 34 mm(4.2 x 2.5 x 1.3″)
Weight
210 g (7.4 oz)
Power Cable
Included
Output Voltage
54V DC at 1.12A
Rated Voltage
100–240V AC at 50/60Hz
Gigabit LAN Port
✓
4-pair Powering
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
Clamping Protection
11V Data, 60V power
Data In / PoE
RJ45 Shielded Socket
Input Current
1.5A Max.
Inrush Current
<150A peak at 230V AC
Efficiency
>88%
Switching Frequency
65 kHz
Output Ripple
1% Max.
Line Regulation
≤ 2%
Load Regulation
≤ 5%
Max. PoE+ Wattage per Port by PSE
60W
Max. Surge Discharge
1500A (8/20 μs) power
Peak Pulse Current
36A (10/1000 μs) data
Response Time
<1 ns
Shunt Capacitance
<5 pF data
Surge Protection
Difference and common mode
Ambient Storage Temperature
-30 to 70°C (-22 to 158° F)
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
10 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
