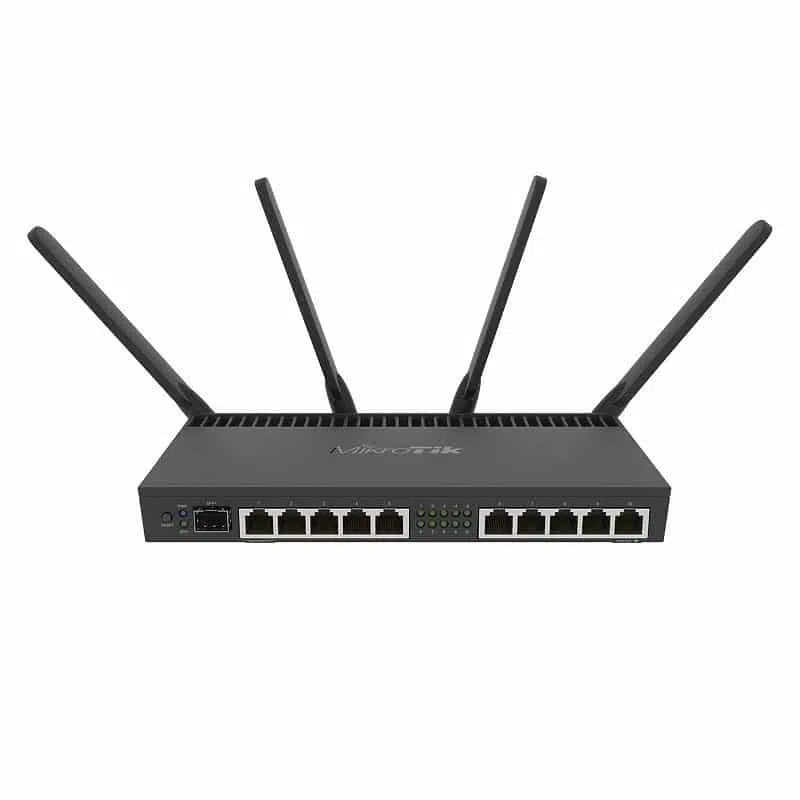

RB4011iGS+5HacQ2HnD-IN สามารถรองรับ Users Online ได้มากถึง 150+ Clients และ รองรับ Throughput (อินเตอร์เน็ต) ได้ถึง 700 Mbps (แบบมีการเขียน Firewall) ; Mikrotik RB4011iGS+5HacQ2HnD-IN ฮาร์ดแวร์ รองรับการทำงาน CPU 4 Core และ RAM 1GB มี Interface LAN Gigabit จำนวน 10 Ports และ Interface SFP+ 10Gbps ให้อีกด้วย ; RB4011iGS+5HacQ2HnD-IN รองรับการทำงานแบบ Dual-Band 2.4Ghz / 5Ghz 4×4 MIMO และได้ Bandwidth Speed รวมทั้งหมด 2033 Mbps และที่สำคัญรุ่นนี้ Ether10 สามารถจ่ายไฟ Passive PoE 24V หรือ 802.3af PoE / 802.3at PoE+ ; RB4011iGS+5HacQ2HnD-IN มีช่อง Serial port RJ45 ให้ด้วย
- RB4011iGS+5HacQ2HnD-IN รองรับการทำงาน Mode Access Point จับเกาะ Wi Fi ได้สูงสุดถึง 80+ Clients
- รองรับการทำงาน Interface (1) 1/10G SFP+ Ethernet Ports
- รองรับการทำงาน Interface Gigabit (10) 10/100/1000 Ethernet Port
- RB4011iGS+5HacQ2HnD-IN รองรับการทำงานแบบ Dual-Band 2.4Ghz / 5Ghz
- รองรับ 2.4 GHz Band with Speeds of up to 300 Mbps
- รองรับ 5 GHz Band with Speeds of up to 1733 Mbps [4×4 MIMO]
- Ether10 สามารถจ่ายไฟ Passive PoE 24V หรือ 802.3af PoE / 802.3at PoE+
- รองรับ features Hotspot ; Dynamic Routing ; VPN ; Firewall ; และอื่นๆอีกมากมาย
RB4011iGS+5HacQ2HnD-IN Specifications
Details |
Product code |
RB4011iGS+5HacQ2HnD-IN |
Architecture |
ARM 32 bit |
CPU |
AL21400 |
CPU core count |
4 |
CPU nominal frequency |
1.4 GHz |
Dimensions |
228 x 120 x 30 mm |
License level |
5 |
Operating System |
RouterOS |
Size of RAM |
1 GB |
Storage size |
512 MB |
Storage type |
NAND |
Tested ambient temperature |
-40°C to 45°C |
PoE in |
Passive PoE |
PoE in input Voltage |
18-57 V |
PoE out |
Passive PoE up to 57 V |
PoE-out ports |
Ether 10 |
Number of DC inputs |
2 (DC jack, PoE-IN) |
DC jack input Voltage |
12-57 V |
Max power consumption |
44 W |
Max power consumption without attachments |
23 W |
Wireless 5 GHz Max data rate |
1733 Mbit/s |
Wireless 5 GHz number of chains |
4 |
Wireless 5 GHz standards |
802.11a/n/ac |
Antenna gain dBi for 5 GHz |
3 |
Wireless 5 GHz chip model |
QCA9984 |
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
Wireless 2.4 GHz number of chains |
2 |
Wireless 2.4 GHz standards |
802.11b/g/n |
Antenna gain dBi for 2.4 GHz |
3 |
Wireless 2.4 GHz chip model |
R11e 2HnD |
10/100/1000 Ethernet ports |
10 |
SFP+ ports |
1 |
MiniPCI-e slots |
1 |
Serial ports |
RJ45 |
Link Download |
Brochure รุ่น RB4011iGS+5HacQ2HnD-IN |
Warranty |
รับประกัน 2 ปีเต็ม เสียเปลียนสินค้าให้ทันที |
รีวิว RB4011iGS+5HacQ2HnD IN
Ethernet test results
RB4011iGS+5HacQ2HnD-IN Wireless specifications
5 GHz |
Transmit (dBm) |
Receive Sensitivity |
6MBit/s |
33 |
-96 |
54MBit/s |
29 |
-81 |
MCS0 |
33 |
-96 |
MCS7 |
28 |
-77 |
MCS9 |
26 |
-72 |
2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
1MBit/s |
28 |
-100 |
11MBit/s |
28 |
-94 |
6MBit/s |
29 |
-96 |
54MBit/s |
25 |
-80 |
MCS0 |
26 |
-96 |
MCS7 |
24 |
-79 |
